Product description:
Model: PS-4000W-48v-120v
· 4000 Watt continuous pure sine power
· 12000 watt peak power

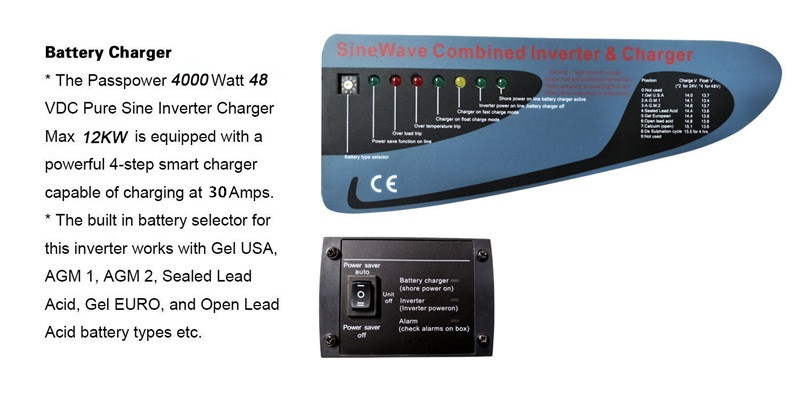

· Built in smart battery charger with 7 selectable battery type settings
· Auto gen start feature.Multi Stage Smart charger 30 Amp
· Marine and industrial grade
The 4000 watt 48 volt low frequency pure sine inverter charger is three products in one, a combination of an inverter, battery charger and AC auto-transfer switch.
The 4000 watt 48 volt low frequency Power inverter charger transforms DC (direct current) power, stored by batteries, into AC (alternating current) electricity that can be used to run your various tools and appliances. This inverter also has a built in AC-to-DC battery converter charger, which allows users to recharge their battery bank from an AC source such as a fuel-powered generator, shore power or a regular outlet at home. The built in battery charger features a seven type battery selector and 4 stage charging, for safely and effectively charging your battery source. Use this product for renewable solar, off-grid, mobile and emergency backup power applications anywhere that uses 110 or 120 volts of alternating current.
Product Features for PS-4000
4000 watt low frequency inverter
12000 watt surge 300% surge capability
DC input and Ac output totally isolated design
High efficiency 88%--90%
Inverter power saving mode
AC/Battery Priority Selector
Terminal Block
Multi Stage Smart charger 30 Amp
Remote LED display panel and the RJ11 standard interface available
8msec typical transfer time
Selectable 25W power save mode (hibernation)
7 battery type settings for charger
Containing 4-step charging modes, charging current automatic adjustment
Multiple protection functions over-current, overload, output short circuit protection etc.
Inverter Output Specifications:
Continuous Output Power: 4000 Watts
Surge Rating: 12000 Watts
Output Waveform: Pure Sine/Same as input (Bypass Mode)
Output voltage:120VAC±5%
AC Input voltage range: 90~135VAC
Power factor: 0.1~1
Nominal Efficiency: >88% (Peak)
Line Mode Efficiency: >95%
Output Frequency: 50Hz +/- 0.5Hz / 60Hz +/- 0.5Hz
Typical Transfer Time: 8ms (Max)
THD: < 5%
Ambient operating temperature: -4°F to 122°F (-20°C to 50°C)
Input Specifications
Nominal Input Voltage: 48.0Vdc
Minimum Start Voltage: 40.0Vdc
Low Battery Alarm: 41.0±1.2VDC
Low Battery shutoff: 40.0±1.2VDC
Low battery Trip: 40.0Vdc-42.0Vdc
High Voltage Alarm and Shutoff: 64.0±1.2VDC
Idle Consumption: 55 Watts
Charger breaker - 30 amps
Power Saver Mode Idle Consumption: 10.0 watts
Charger Specifications
Output voltage: Depends on battery Type
Charger Rate: 30A
Dimensions
Unit Weight: 77.27 lbs.(35kgs)
Unit Size L x W x H: 26.38 x 8.67 x 7.10 inches (67x22x18cm)
Shipping Weight:99.34 lbs.(45kgs)
Shipping L x W x H : 30.32 x 13.39 x 12.99 inches (77*34*33cm)
Basic datasheet for Pure Sine Inverter Charger 48vdc 230vac 4000w
| Model | PS4000-148 |
| Output power | 4000W |
| Impact power | 12000W |
| DC input voltage | 48VDC |
| Output voltage | 120VAC±5% |
| Output frequency | 50/60HZ±0.5% |
| Output wave form | Pure sine wave ( THD< 5 % ) |
| Power factor | 0.1~1 |
| Max efficiency | 88% |
| Standby power loss | <10W( Saving power mode ) |
| Switching time | <8ms |
| AC Input voltage range | 90~135VAC |
| DC Input voltage range | 42~62VDC |
| DC charging current | 30A |
| Fault indication | LED red |
| Remote switch (optional ) | RJ11-LED or RJ45-LCD |
| Work temperature | -20~50℃ |
| Working humidity | 20~90%RH |
| Storage temperature | -30~70℃ |
| Cooling way | Temperature controlled cooling fan |
| Net Weight(kgs) | 77.27 lbs.(35kgs) |
| Product Size(cm) | 26.38 x 8.67 x 7.10 inches (67x22x18cm) |
| Applications | Caravan, motorhome, camper,Car, yacht, solar energy systems, mobile devices, industrial control, power tools, Home Office etc. |
